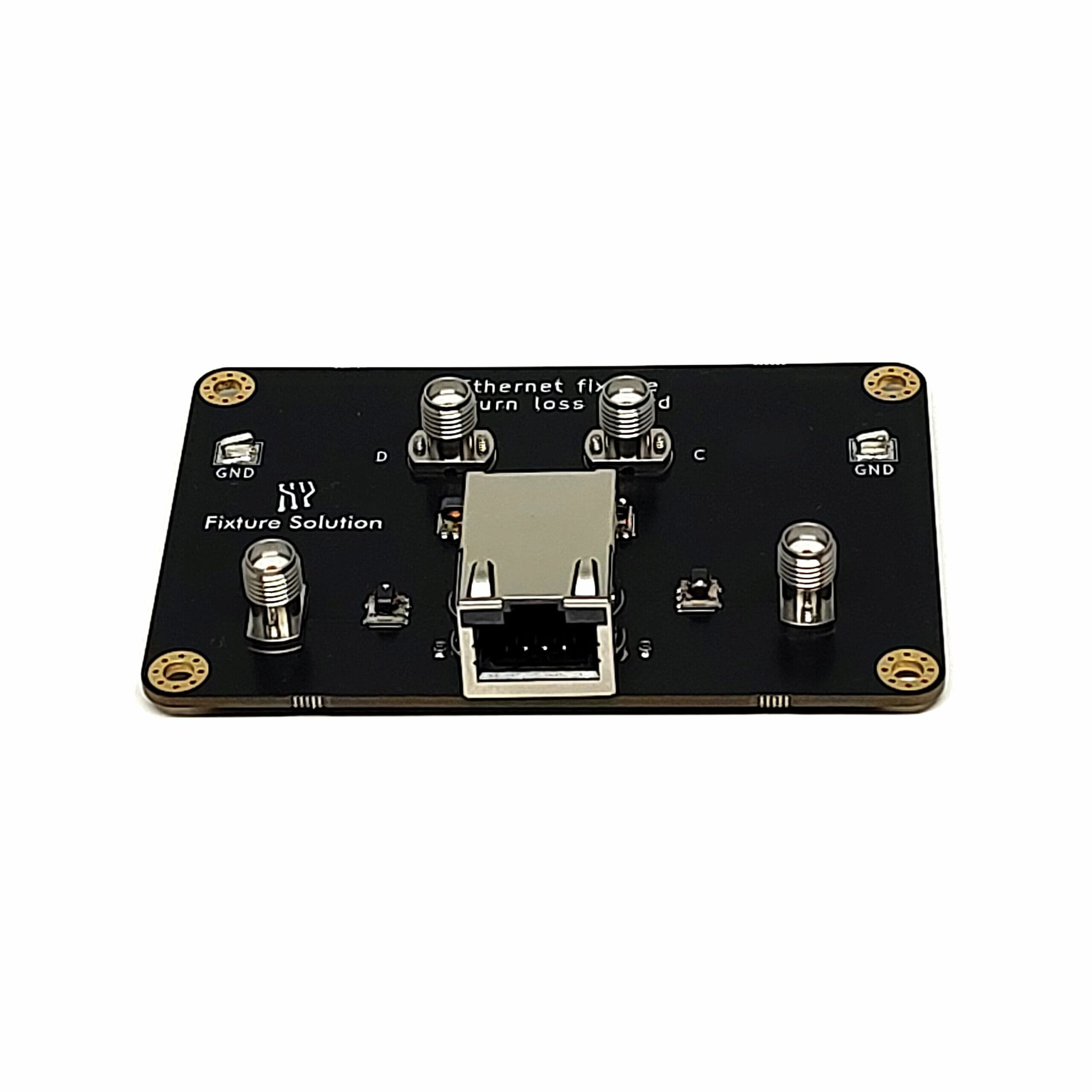

Description
Used for Return Loss
10Base-T
- Transmitter Differential Return Loss (IEEE Std 802.3™‐2022 – 14.3.1.2.2)
- Receiver Differential Return Loss (IEEE Std 802.3™‐2022 – 14.3.1.3.4)
| Pattern | Criteria | |
| 14.3.1.2.2 | ||
| Transmitter Differential Return Loss | 100Ohm – 85Ohm – 111Ohm < -15dB (5MHz / 10MHz) |
|
| 14.3.1.3.4 | ||
| Receiver Differential Return Loss | 100Ohm – 85Ohm – 111Ohm < -15dB (5MHz / 10MHz) |
