Description
10Base-T
Common-mode output voltage (IEEE Std 802.3™‐2022 – 14.3.1.2.5)
1000Base-T
MDI common-mode output voltage (IEEE Std 802.3™‐2022 – 40.8.3.3)
| Pattern | Criteria | |
| 10BaseT | Pseudo Random | < 50mV pkp |
| 1000BaseT | Test Mode 4 | < 50mV pkp |

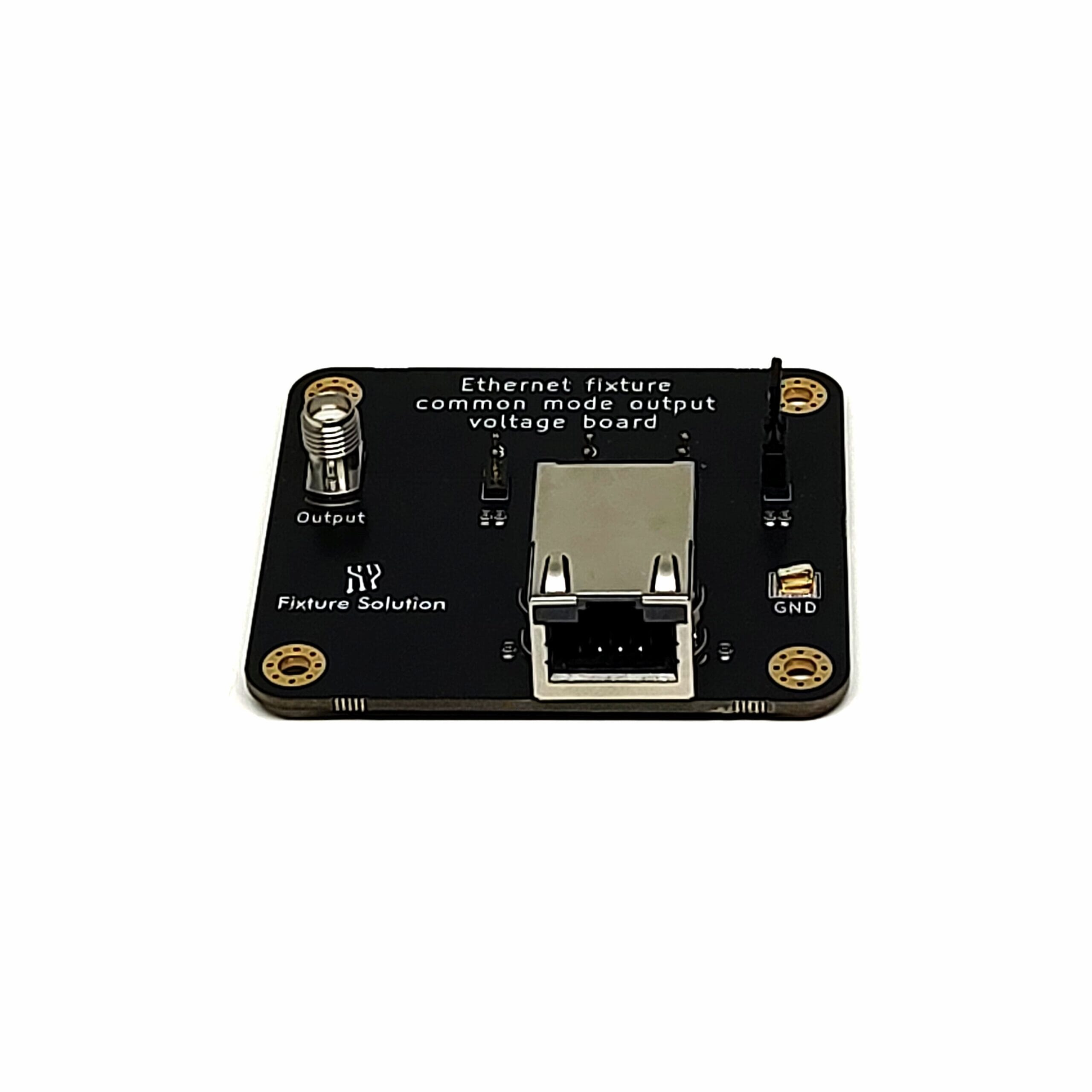

Ethernet Common Mode Voltage
€ 250,00
According to the IEEE Std 802.3™‐2022 the magnitude of the total common-mode output voltage of the transmitter shall be less than 50 mV peak to peak at frequencies above 1 MHz for 10BaseT and 1000BaseT.
Common-mode output voltage (IEEE Std 802.3™‐2022 – 14.3.1.2.5)
